Name: V-RAPTOR 8K VV + 6K S35 (Dual Format) 710-0342
Brand: Red Digital Cinema Camera
Price: 4675000 JPY
Availability: InStock

V-RAPTOR 8K VV + 6K S35 (Dual Format) 710-0342

新品

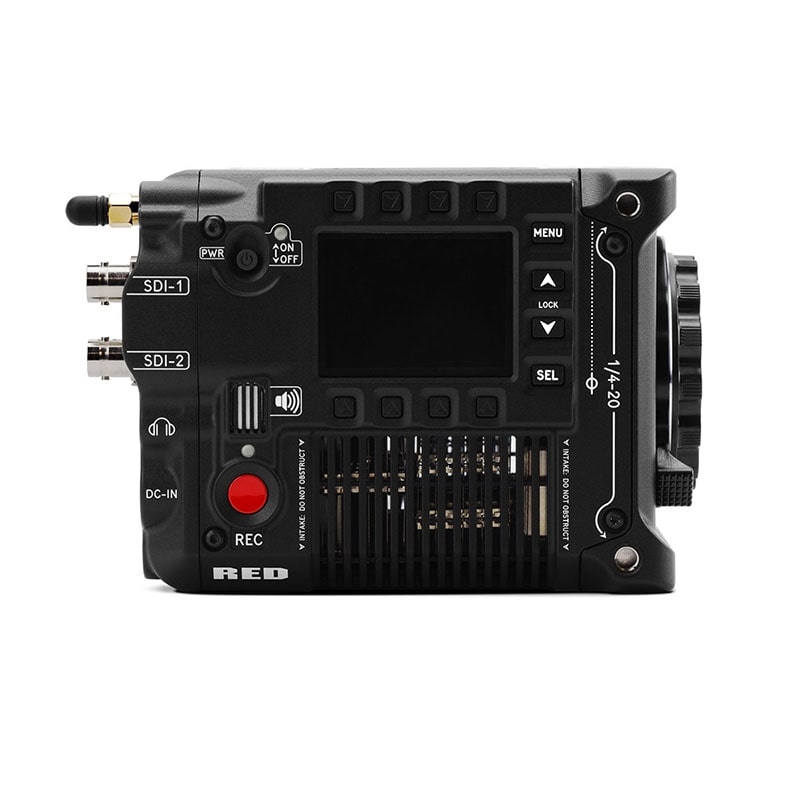

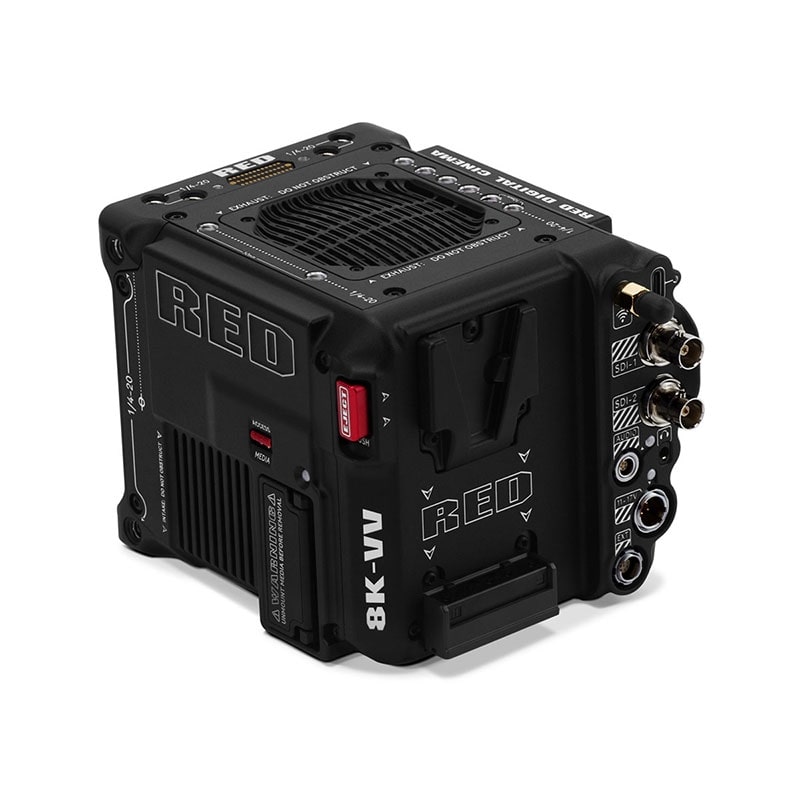

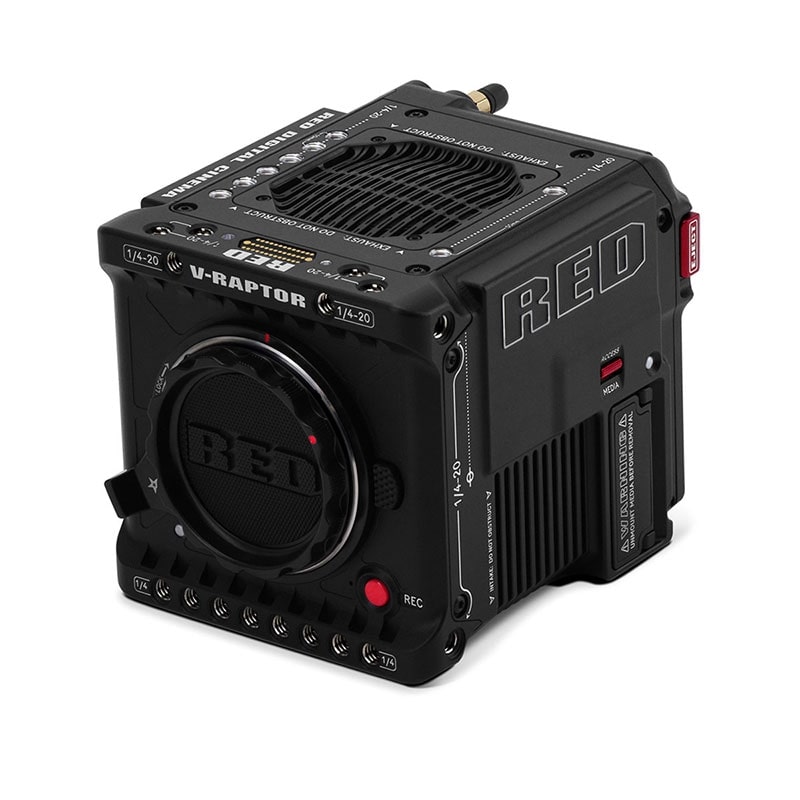

V-RAPTOR 8K VV + 6K S35 (Dual Format) 710-0342

Red Digital Cinema Cameraレッドデジタルシネマカメラ

ゲスト会員・販売価格(税込)：: ￥4,675,000

残りわずか

￥4,675,000(税込)

下取交換でさらに￥100,000お得!

商品コード：: C0810016942054

販売開始日：: 2021/10/20

お気に入り

買取金額を見る

Staff Review スタッフレビュー

Product Review プロダクトレビュー

Setup Review セットアップレビュー

Staff Blog スタッフブログ

RED cinema camera史上最も強力かつ汎用性のあるカメラ

V-RAPTOR 8K VVは、RED cinema camera史上最も強力かつ汎用性のあるカメラです。REDブランド最重要システムおよびセンサー、また新DSMC3世代カメラ最初の参入者として、V-RAPTORは、デジタル画像キャプチャ技術の最前線に単独で存在しています。

主な仕様

SENSOR SPECS > SENSOR TYPE: V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
SENSOR SPECS > EFFECTIVE PIXELS: 8192 × 4320
SENSOR SPECS > SENSOR SIZE: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
SENSOR SPECS > DYNAMIC RANGE: 17+ stops

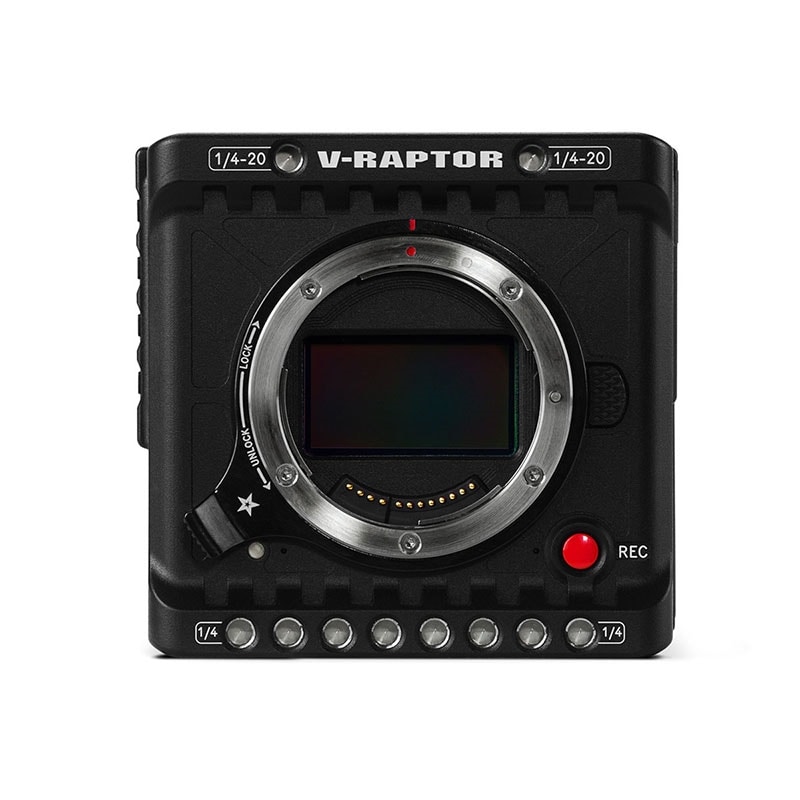

LENS MOUNT > MOUNT TYPE: Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
RECORDING > MAX DATA RATES: Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
RECORDING > REDCODE® RAW MAX FRAME RATES: 120 fps at 8K 17:9 (8192 x 4320),150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780),175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240),200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700),240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160),300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620),400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080),600 fps at 2
RECORDING > PLAYBACK FRAME RATES(PROJECT TIME BASE): 23.98,24,25,29.97,30,50,59.94,60 fps,all resolutions
RECORDING > BEST AVAILABLE REDCODE® SETTINGS: REDCODE HQ,MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ,MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ,MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ,MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
RECORDING > REDCODE® RAW ACQUISITION FORMATS: 8K 17:9 (8192 x 4320),2:1,2.4:1,16:9,1:1 and Anamorphic 2x,1.8x,1.6x,1.5x,1.3x,1.25x
7K 17:9 (7168 x 3780),2:1,2.4:1,16:9,1:1 and Anamorphic 2x,1.8x,1.6x
6K 17:9 (6144 x 3240),2:1,2.4:1,16:9,1:1 and Anamorphic 1.5x,1.3x,1.25x
5K 17:9 (5120 x 2700),2:1,2.4:1,16:9,1:1
4K 17:9 (4096 x 2160),2:1,2.4:1,16:9,1:1
3K 17:9 (3072 x 1620),2:1&#
GENERAL > CONSTRUCTION: Aluminum Alloy
GENERAL > WEIGHT: 4.03 lbs (without body cap and CFexpress card)
GENERAL > DIMENSIONS: 6”x 4.25”x 4.25”(L x W x H)
GENERAL > BATTERY TYPE: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
GENERAL > DC POWER INPUT: 11-17V via 6-pin DC-IN
GENERAL > OPERATING TEMPERATURE: 0°C to 40°C (32°F to 104°F)
GENERAL > STORAGE TEMPERATURE: -20°C to 50°C (-4°F to 122°F)
GENERAL > STORAGE RELATIVE HUMIDITY: 0% to 85% non-condensing
GENERAL > COLOR MANAGEMENT: Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
GENERAL > AUDIO: Integrated dual channel digital mono microphones,uncompressed,24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port,uncompressed,24-bit 48 kHz
GENERAL > REMOTE CONTROL: Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock,Timecode-in,GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control,live MJPEG preview video feed and remote media offload
GENERAL > MONITOR OUTPUTS: Integrated dual 12G-SDI with 6G-SDI,3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p,25p,24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p,25p,24p
SMPTE Timecode,HANC Metadata,24-bit 48 kHz Audio
GENERAL > MONITOR OPTIONS: DSMC3 RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4”LCD for camera control (no preview video)
SOFTWARE > RED CONTROL: Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
付属品: 1 x DSMC ACパワーアダプターパック (150W)
1 x RED ロゴ・スティッカー
V-RAPTOR 情報カード (登録・サポート情報含)
2年標準保証
