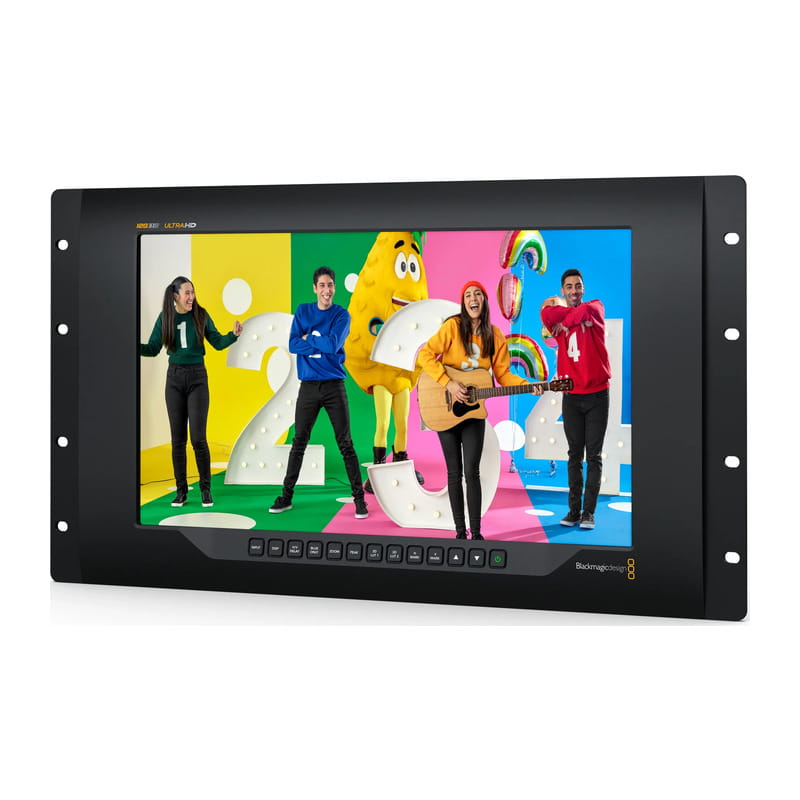

ST 2110 IPおよび12G-SDI搭載の高品質モニター。2160p60までのSD、HD、Ultra HDに対応
主な仕様
- ソフトウェア
- ■Internal Software Upgrade
Via included firmware updater software.
■Settings Control
Via USB or Ethernet. - オペレーティングシステム
- Mac 12.0 Monterey、
Mac 13.0 Ventura あるいはそれ以降のバージョン
Windows 10 64-bit
Windows 11 - ディスプレイ
- ■Display Element
15.6" TFT Active Matrix LCD
■Display Resolution
3840 x 2160 pixels
■Response
25 ms
■Contrast Ratio
1000:1
■Color Depth
16.7 million colors - 電源条件
- ■Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
■電源入力
1 x IEC C14 socket for AC power.
1 x 5.5mm barrel +12V DC In for external power supply or battery use.
■Power Consumption
24 W - インストール
- 6 rack units.
- サイズ
- 寸法:483 x 70 x 266 mm
重量:3.6kg - 作動環境
- 動作温度
0° to 40° C (32° to 104° F)
保管温度
-20° to 60° C (-4° to 140° F)
相対湿度
0% ~ 90% 結露なし - 保証
- 12 Months Limited Manufacturer's Warranty.
- 付属品
- Welcomeウォレット(ソフトウェアのダウンロード用のQRコード付き)
接続
- SDI入力
- 2
- SDI出力
- 1 loop out.
Reclocked video output that automatically switches to input selection. - SDIレート
- 270Mb, 1.5G, 3G, 6G, 12G.
- Optical Video Input
- SFP Optical Fiber connector cage.
Supports 2110 IP video and optical SDI. - 対応マルチレート
- Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
- アップデートおよびコンフィギュレーション
- USB
- イーサネット
- 1 x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
- タリー
- 9-pin D connector
フォーマット
- SD Format Support
- 525i59.94 NTSC, 625i50 PAL
- 対応HDフォーマット
- 720p50、720p59.94、720p60
1080i50、1080i59.94、1080i60
1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p47.95、1080p48、1080p50、1080p59.94、1080p60
1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、1080PsF30 - 2K Format Support
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30 - Ultra HD Format Support
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K Format Support
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
- SDI Compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
- SDI Color Space
- REC 601, REC 709
- SDI Auto Switching
- Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
- Video Sampling
- 4:2:2 and 4:4:4
IPビデオ準拠
- SMPTE 2110-20 (Uncompressed Video)
- IGMP v2
- SMPTE 2110-21 (Traffic Shaping)
- Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous - SMPTE 2110-30 (PCM)
- Audio Conformance level: Level C
- SMPTE 2110-40 (Ancillary Data)
- Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
- Precision Time Protocol(PTP)
- IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2 - NMOS IS-04 Discovery and Registration
- v1.3.2
Peer-to-peer via mDNS/DNS-SD - NMOS IS-05 Connection Management
- v1.1.2
- NMOS BCP-002-01
- Natural Grouping
- NMOS BCP-004-01
- Receiver capabilities
- Codec
- Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
